Panels
88 of 88
| panel | pitch | module | scan | chip | status + | formats | tested with | |
|---|---|---|---|---|---|---|---|---|
| 104x104 1/52 DP5525 | 104x104 | 1/52 | DP5525 (mined) | generates | rcvbp | |||
| 104x104 1/52 ICN2065 | 104x104 | 1/52 | ICN2065 (mined) | generates | rcvbp | |||
| 104x104 1/52 ICND2163 | 104x104 | 1/52 | ICND2163 (mined) | generates | rcvbp | |||
| 104x104 1/52 LS9929 | 104x104 | 1/52 | LS9929 (mined) | generates | rcvbp | |||
| 104x52 1/13 DP5525 | 104x52 | 1/13 | DP5525 (mined) | generates | rcvbp | |||
| 104x52 1/13 ICN2053 | 104x52 | 1/13 | ICN2053 (mined) | generates | rcvbp | |||
| 104x52 1/13 MY9868 | 104x52 | 1/13 | MY9868 (mined) | generates | rcvbp | |||
| 104x52 1/13 SM16380 | 104x52 | 1/13 | SM16380 (mined) | generates | rcvbp | |||
| 104x52 1/26 ICN2053 | 104x52 | 1/26 | ICN2053 (mined) | generates | rcvbp | |||
| 104x52 1/26 SM16237DS | 104x52 | 1/26 | SM16237DS (mined) | generates | rcvbp | |||
| 104x52 1/26 SM16380 | 104x52 | 1/26 | SM16380 (mined) | generates | rcvbp | |||
| 112x104 1/52 ICN2065 | 112x104 | 1/52 | ICN2065 (mined) | generates | rcvbp | |||
| 112x104 1/52 SM16389 | 112x104 | 1/52 | SM16389 (mined) | generates | rcvbp | |||
| 128x128 1/64 ICN2065 | 128x128 | 1/64 | ICN2065 (mined) | generates | rcvbp | |||
| 128x64 1/16 DP5525 | 128x64 | 1/16 | DP5525 (mined) | generates | rcvbp | |||
| 128x64 1/16 ICN2053 | 128x64 | 1/16 | ICN2053 (mined) | generates | rcvbp | |||
| 128x64 1/32 ICN2038S | 128x64 | 1/32 | ICN2038S (mined) | generates | rcvbp | |||
| 128x64 1/32 ICN2053 | 128x64 | 1/32 | ICN2053 (mined) | generates | rcvbp | |||
| 128x64 1/32 ICN2055 | 128x64 | 1/32 | ICN2055 (mined) | generates | rcvbp | |||
| 128x64 1/32 LS9929 | 128x64 | 1/32 | LS9929 (mined) | generates | rcvbp | |||
| 128x64 1/32 SM16237DS | 128x64 | 1/32 | SM16237DS (mined) | generates | rcvbp | |||
| 128x64 1/32 SM16380 | 128x64 | 1/32 | SM16380 (mined) | generates | rcvbp | |||
| 144x48 1/24 ICN2053 | 144x48 | 1/24 | ICN2053 (mined) | generates | rcvbp | |||
| 160x40 1/20 ICN2053 | 160x40 | 1/20 | ICN2053 (mined) | generates | rcvbp | |||
| 160x80 1/40 DP5525 | 160x80 | 1/40 | DP5525 (mined) | generates | rcvbp | |||
| 160x80 1/40 ICN2038S | 160x80 | 1/40 | ICN2038S (mined) | generates | rcvbp | |||
| 160x80 1/40 ICN2065 | 160x80 | 1/40 | ICN2065 (mined) | generates | rcvbp | |||
| 160x80 1/40 ICND2163 | 160x80 | 1/40 | ICND2163 (mined) | generates | rcvbp | |||
| 160x80 1/40 LS9929 | 160x80 | 1/40 | LS9929 (mined) | generates | rcvbp | |||
| 160x80 1/40 LS9930 | 160x80 | 1/40 | LS9930 (mined) | generates | rcvbp | |||
| 160x80 1/40 SM16380 | 160x80 | 1/40 | SM16380 (mined) | generates | rcvbp | |||
| 16x104 1/52 DP5525 | 16x104 | 1/52 | DP5525 (mined) | generates | rcvbp | |||
| 16x104 1/52 ICN2065 | 16x104 | 1/52 | ICN2065 (mined) | generates | rcvbp | |||
| 16x128 1/64 SM16389 | 16x128 | 1/64 | SM16389 (mined) | generates | rcvbp | |||
| 172x86 1/43 DP5525 | 172x86 | 1/43 | DP5525 (mined) | generates | rcvbp | |||
| 172x86 1/43 ICN2065 | 172x86 | 1/43 | ICN2065 (mined) | generates | rcvbp | |||
| 172x86 1/43 LS9935B | 172x86 | 1/43 | LS9935B (mined) | generates | rcvbp | |||
| 172x86 1/43 LS9936 | 172x86 | 1/43 | LS9936 (mined) | generates | rcvbp | |||
| 172x86 1/43 SM16380 | 172x86 | 1/43 | SM16380 (mined) | generates | rcvbp | |||
| 172x86 1/43 SM16389 | 172x86 | 1/43 | SM16389 (mined) | generates | rcvbp | |||
| 174x58 1/29 ICN2053 | 174x58 | 1/29 | ICN2053 (mined) | generates | rcvbp | |||
| 192x64 1/32 ICN2053 | 192x64 | 1/32 | ICN2053 (mined) | generates | rcvbp | |||
| 208x52 1/26 ICN2053 | 208x52 | 1/26 | ICN2053 (mined) | generates | rcvbp | |||
| 208x52 1/26 ICN2055 | 208x52 | 1/26 | ICN2055 (mined) | generates | rcvbp | |||
| 232x58 1/29 ICN2053 | 232x58 | 1/29 | ICN2053 (mined) | generates | rcvbp | |||
| 32x32 1/8 ICN2053 | 32x32 | 1/8 | ICN2053 (mined) | generates | rcvbp | |||
| 32x32 1/8 SM16237DS | 32x32 | 1/8 | SM16237DS (mined) | generates | rcvbp | |||
| 48x24 1/6 ICN2038S | 48x24 | 1/6 | ICN2038S (mined) | generates | rcvbp | |||
| 48x24 1/6 LS9930 | 48x24 | 1/6 | LS9930 (mined) | generates | rcvbp | |||
| 48x24 1/6 SM16169S | 48x24 | 1/6 | SM16169S (mined) | generates | rcvbp | |||
| 48x24 1/6 SM16237DS | 48x24 | 1/6 | SM16237DS (mined) | generates | rcvbp | |||
| 48x24 1/6 SM16259 | 48x24 | 1/6 | SM16259 (mined) | generates | rcvbp | |||
| 52x52 1/13 ICN2053 | 52x52 | 1/13 | ICN2053 (mined) | generates | rcvbp | |||
| 64x128 1/64 DP5525 | 64x128 | 1/64 | DP5525 (mined) | generates | rcvbp | |||
| 64x128 1/64 ICN2065 | 64x128 | 1/64 | ICN2065 (mined) | generates | rcvbp | |||
| 64x128 1/64 ICND2163 | 64x128 | 1/64 | ICND2163 (mined) | generates | rcvbp | |||
| 64x128 1/64 LS9929 | 64x128 | 1/64 | LS9929 (mined) | generates | rcvbp | |||
| 64x128 1/64 SM16380 | 64x128 | 1/64 | SM16380 (mined) | generates | rcvbp | |||
| 64x128 1/64 SM16389 | 64x128 | 1/64 | SM16389 (mined) | generates | rcvbp | |||
| 64x32 1/16 ICN2053 | 64x32 | 1/16 | ICN2053 (mined) | generates | rcvbp | |||
| 64x32 1/8 DP5525 | 64x32 | 1/8 | DP5525 (mined) | generates | rcvbp | |||
| 64x32 1/8 LS9930 | 64x32 | 1/8 | LS9930 (mined) | generates | rcvbp | |||
| 64x32 1/8 MBI5153 | 64x32 | 1/8 | MBI5153 (mined) | generates | rcvbp | |||
| 64x32 1/8 SM16169S | 64x32 | 1/8 | SM16169S (mined) | generates | rcvbp | |||
| 64x32 1/8 SM16237DS | 64x32 | 1/8 | SM16237DS (mined) | generates | rcvbp | |||
| 64x32 1/8 SM16259 | 64x32 | 1/8 | SM16259 (mined) | generates | rcvbp | |||
| 64x64 1/16 DP5525 | 64x64 | 1/16 | DP5525 (mined) | generates | rcvbp | |||
| 64x64 1/16 ICN2038S | 64x64 | 1/16 | ICN2038S (mined) | generates | rcvbp | |||
| 64x64 1/16 ICN2053 | 64x64 | 1/16 | ICN2053 (mined) | generates | rcvbp | |||
| 64x64 1/16 MBI5124 | 64x64 | 1/16 | MBI5124 (mined) | generates | rcvbp | |||
| 64x64 1/16 MBI5124N | 64x64 | 1/16 | MBI5124N (mined) | generates | rcvbp | |||
| 64x64 1/16 MBI5153 | 64x64 | 1/16 | MBI5153 (mined) | generates | rcvbp | |||
| 64x64 1/32 DP5525 | 64x64 | 1/32 | DP5525 (mined) | generates | rcvbp | |||
| 64x64 1/32 ICN2038S | 64x64 | 1/32 | ICN2038S (mined) | generates | rcvbp | |||
| 64x64 1/32 ICN2053 | 64x64 | 1/32 | ICN2053 (mined) | generates | rcvbp | |||
| 64x64 1/32 MBI5153 | 64x64 | 1/32 | MBI5153 (mined) | generates | rcvbp | |||
| 64x64 1/32 MY9862 | 64x64 | 1/32 | MY9862 (mined) | generates | rcvbp | |||
| 64x64 1/32 MY9868 | 64x64 | 1/32 | MY9868 (mined) | generates | rcvbp | |||
| 64x64 1/32 SM16237DS | 64x64 | 1/32 | SM16237DS (mined) | generates | rcvbp | |||
| 64x64 1/32 SM16259 | 64x64 | 1/32 | SM16259 (mined) | generates | rcvbp | |||
| 64x64 1/32 SM16380 | 64x64 | 1/32 | SM16380 (mined) | generates | rcvbp | |||
| 80x40 1/20 DP5525 | 80x40 | 1/20 | DP5525 (mined) | generates | rcvbp | |||
| 80x40 1/20 ICN2038S | 80x40 | 1/20 | ICN2038S (mined) | generates | rcvbp | |||
| 80x40 1/20 ICN2053 | 80x40 | 1/20 | ICN2053 (mined) | generates | rcvbp | |||
| 80x40 1/20 SM16237DS | 80x40 | 1/20 | SM16237DS (mined) | generates | rcvbp | |||
| 86x86 1/43 LS9929 | 86x86 | 1/43 | LS9929 (mined) | generates | rcvbp | |||
| 96x96 1/48 ICN2065 | 96x96 | 1/48 | ICN2065 (mined) | generates | rcvbp | |||

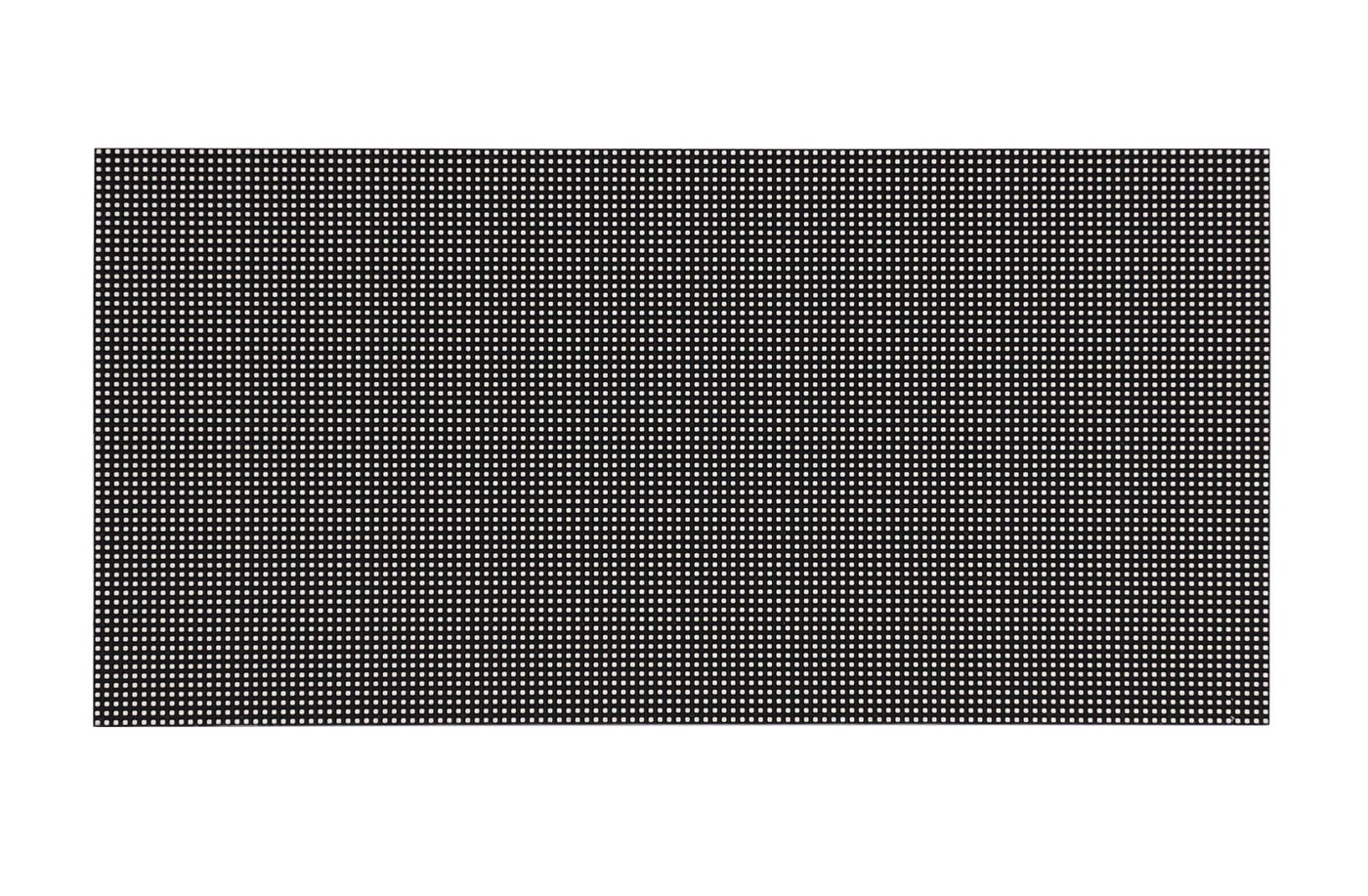

 | P2.5 128x64 1/16 SM16269S Eager LED P2.5-O16S-SMD1415-128x64-E | 2.5 | 128x64 | 1/16 | SM16269S (factory values) | tested | rcvbp | E120 |
